100kW–500kW Liquid Cooled Load Bank

Unser Flagship –500kW per unit, parallel schaltbar über 1MW, für den direkten Einsatz im Data Center.

Quote anfragenRent
100kW bis 500kW Liquid Cooled Load Bank

Technical Highlights

500kW per unit
Hohe Leistungsdichte –eine Einheit deckt den Bedarf großer CDU-Systeme
1MW+ Cluster Capability
Mehrere Einheiten zentral gesteuert als ein System –Hyperscale-tauglich
CDU Communication
Complete protocol adaptation to your control room and building management system
Remote maintenance
Remote access via VPN, including firmware updates and remote diagnostics

Technical Specifications

Rated power per unit100–500 kW (kundenspezifisch gestaffelt)
Max. cluster power1 MW+ (bis 4 Einheiten parallel)
Operating voltage400 / 480 VAC, 50/60 Hz
Cooling typeLiquid-cooled, closed circuit with heat exchanger
Flow rate50 –300 L/min, stufenlos regelbar
ΔT Supply/Return5 –15 K, programmierbare Rampen und Haltephasen
Accuracy±0,3% vom Sollwert
Protection ratingIP54 –direkt im Data Center aufstellbar
Remote accessVPN, webbasiertes Dashboard, REST API
InterfacesModbus TCP, RS485, CDU-Protokoll (anpassbar), REST API

Application Areas

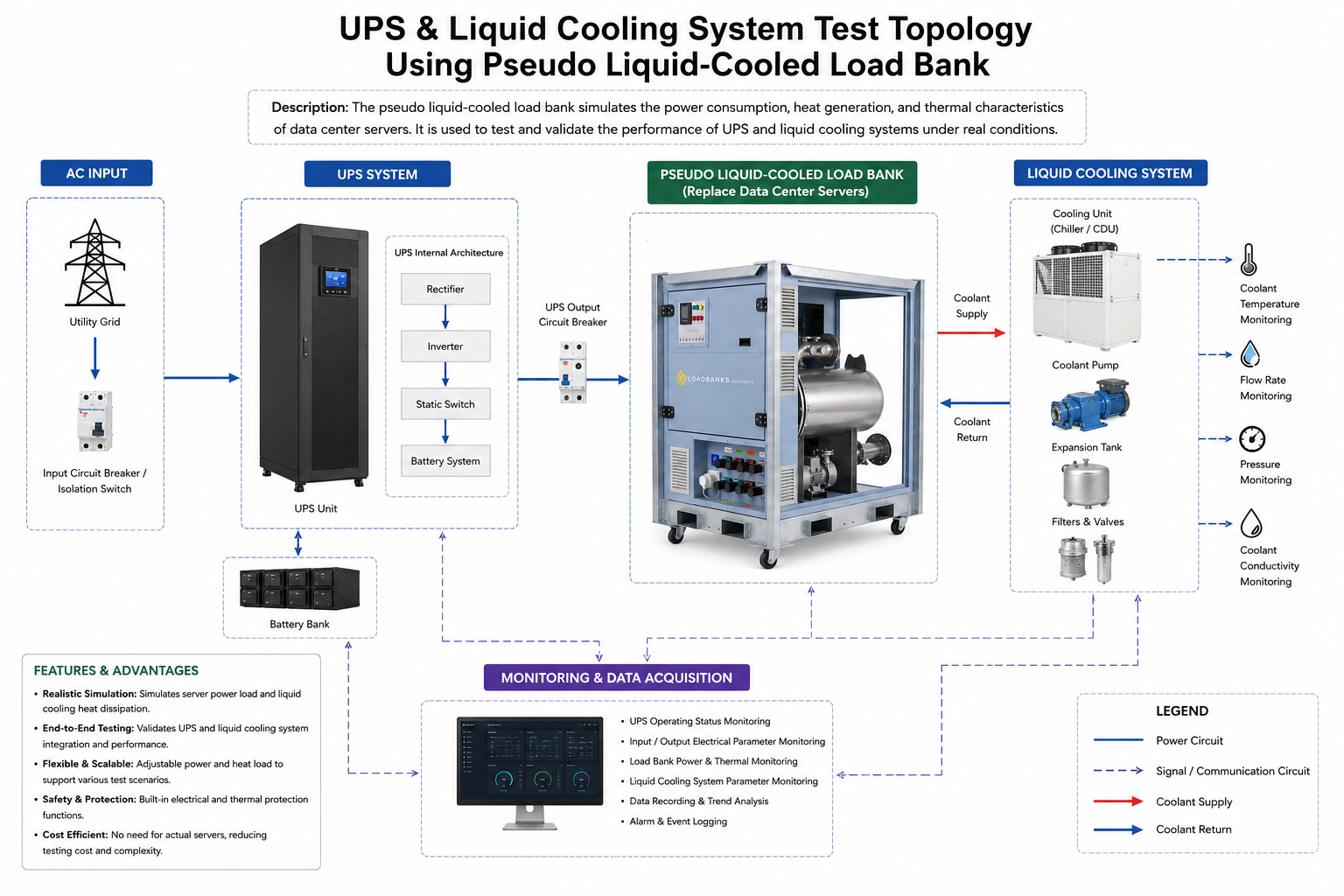

Anschlusstopologie 100-500kW

Inquiry für 100–500kW Liquid Cooled Load Bank
